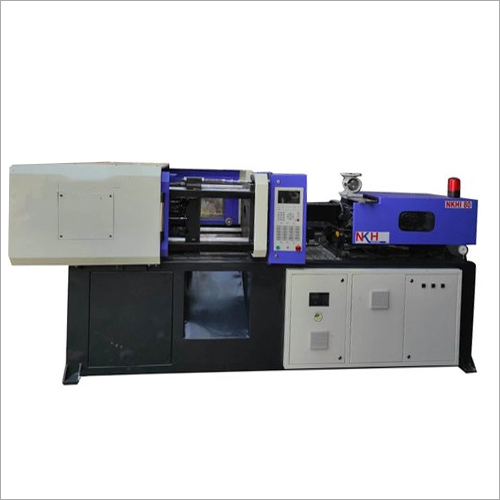

PortugueseNKH160 Automatic Microprocessor Controlled Injection Molding Machine
Product Details:
- Product Type Injection Molding Machine
- General Use Industrial
- Material Mild steel
- Weight (kg) 4.6 Tonne
- Automatic Yes
- Screw Diameter 42 Millimeter (mm)
- Voltage 440 Volt (v)
1800000 INR/Unit
X
Price And Quantity
- 1800000 INR/Unit
- 1 Unit
Product Specifications
- 4.98x1.32x2.1 Meter (m)
- Yes
- 440 Volt (v)
- 42 Millimeter (mm)
- Injection Molding Machine
- Industrial
- 4.6 Tonne
- Mild steel
Trade Information
- Cash Advance (CA)
- 7-10 Days
- All India
Product Description
Product Details:
| Brand | NKHI |
| Capacity | 160 ton/day |
| Automation Grade | Automatic |
| Orientation | Horizontal |
| Phase | Three Phase |
| Country of Origin | Made in India |
| Operating Voltage | 440 V |
| Frequency | 50 Hz |
| Oil Tank Capacity | 280 L |
| Machine Dimension | 4.98x1.32x2.1 m |
| Machine Weight | 4.6 Ton |
| Model Name/Number | NKH160 |
| Injection Weight | 303 GSM |
| Screw Diameter | 42 mm |
| Screw Speed | 190 RPM (max) |
| Ejector Stroke | 120 mm |
| Screw Stroke | 235 mm |
| Shot Size | 332.5 cm3 |
| Injection Pressure | 225 MPA |
| Clamping tonnage | 1600 kN |
| Toggle Stroke | 430 mm |
| Platen Dimension | 680x680 mm |
| Tie bar diameter | 75 mm |
| Space between tie bar | 460x460 mm |
| Max Mould Height | 480mm |
| Min. Mould Height | 180 mm |
| Ejector Tonnage | 45 kN |
| Ejector No. | 5 |
| Max. Pump Pressure | 16 MPA |
| Pump Motor Power | 16 kW |
| Heater Power | 7.5 kW |
| Hopper Capacity | 25 L |
| Platen Thickness | 185 mm |
Available Details :
- Screw Diameter: 48, 50 mm
- Shot Size: 434, 471 cm3
- Injection Weight: 495, 429 GSM
- Injection Pressure: 183, 195 MPA
- Platen Thickness: 172, 159 mm
