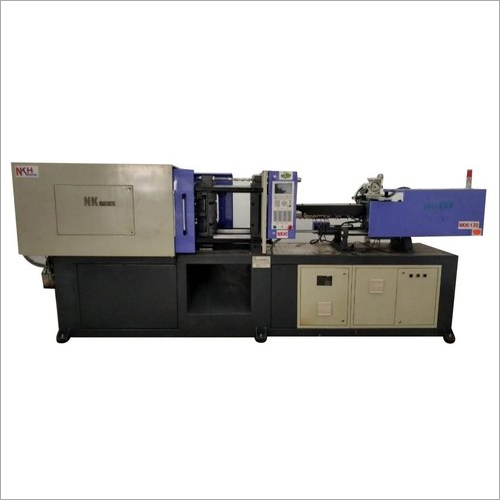

PortugueseNKH130 Injection Molding Machine
Product Details:
- Product Type Injection Molding Machine
- General Use Industrial
- Material Mil;d steel
- Weight (kg) 3.8 Tonne
- Automatic Yes
- Screw Diameter 40 Millimeter (mm)
- Voltage 220 Volt (v)
1500000 INR/Unit
X
Price And Quantity
- 1500000 INR/Unit
- 1 Unit
Product Specifications
- 4.63x1.23x1.8 Meter (m)
- Yes
- 3.8 Tonne
- Injection Molding Machine
- 220 Volt (v)
- Mil;d steel
- 40 Millimeter (mm)
- Industrial
Trade Information
- Cash Advance (CA)
- 7-10 Days
- All India
Product Description
Holding exhaustive knowledge and customer driven approach, we are considered as the trusted manufacturer and supplier of various types of machinery items. Here our firm is providing NKH130 Injection Molding Machine that is widely utilized in the various industries for fabricating plastics. This item is demanded in the market because of its enhanced accuracy, efficiency and versatility. It is made by using qualitative required materials with the assistance of latest techniques. NKH130 Injection Molding Machine is delivered by us at common market price rate.
Product Details :
| Machine Type | Servo Injection Molding Machine |
| Capacity | 130 ton/day |
| Brand | NKHI |
| Clamping Force | 130 Ton |
| Power | 18 kW |
| Automation Grade | Automatic |
| Oil Tank Capacity | 200 L |
| Machine Dimension | 4.63x1.23x1.8 m |
| Machine Weight | 3.8 Ton |
| Model Name/Number | NKH130 |
| Injection Weight | 217 GSM |
| Screw Diameter | 40 mm |
| Maximum Mould Height | 450 mm |
| Minimum Mould Height | 180 mm |
| Phase | Three Phase |
| Country of Origin | Made in India |
| Frequency | 50 Hz |
| Screw Speed | 260 R/min (max) |
| Ejector Stroke | 120 mm |
| Screw Stroke | 190mm |
| Shot Size | 239 cm3 |
| Injection Pressure | 201 MPA |
| Clamping tonnage | 1300 kN |
| Toggle Stroke | 375 mm |
| Platen Dimension | 625x625 mm |
| Tie bar diameter | 75 mm |
| Space between tie bar | 420x420 mm |
| Ejector Tonnage | 33 kN |
| Ejector No. | 5 |
| Max. Pump Pressure | 16 MPA |
| Pump Motor Power | 14.5 kW |
| Heater Power | 6.2 kW |
| Hopper Capacity | 25 L |
| Platen Thickness | 660 mm |
Available details :
- Screw Diameter: 42, 45 mm
- Shot Size: 263, 302 cm3
- Injection Weight: 240, 275 GSM
- Injection Pressure: 183, 195 MPA
- Platen Thickness: 135, 285mm
